| Brand Name : | SHESHENG |
| Model Number : | SL 2400 |
| Certification : | ISO9001 CE |
| Price : | 1 set |
| Payment Terms : | L/C, T/T |
| Supply Ability : | 6 Sets per Month |
| Delivery Time : | Two months after receipt of advance payment |

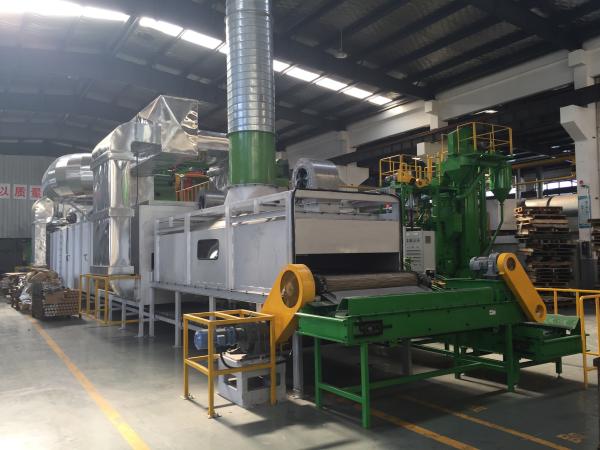

Metal Industrial Paint Curing Oven 1200 Mm Mesh Belt Width Low Noise
Product Description
1. Technological process:
Loading | Leveling | Drying(Pre-heating) | Curing | Cooling | Unloading |
2. Main structure:
Mainly structured of Loading and uncloading sections , HL Cooling System, Convey Unit, Body, Hot Blast Air Generating and Circulating Systems, Electric Control System and so on. High-automaticly controlled with the speed of mesh-blet regulated, it can fully satisfy all curing processes.
3. Main parameter : (Based on M10)
Outside dimension | 28×2×1.9(L*W*H) | m |
Inside dimension | 14×1.2×0.3 (L*W*H) | m |
Max curing temperature | 400 | ℃ |
Temperature uniformity control | ±2 | ℃ |
Max load capacity/mesh-belt | 220 | kg/m² |
Avg.gas consumption | 25 | m³/h |
Max output | 9000 | kg/h |
Belt convey speed | 0.2~1 | m/min |
|
|
